Battery Inverter Cables for 3/8 in Lugs
Description

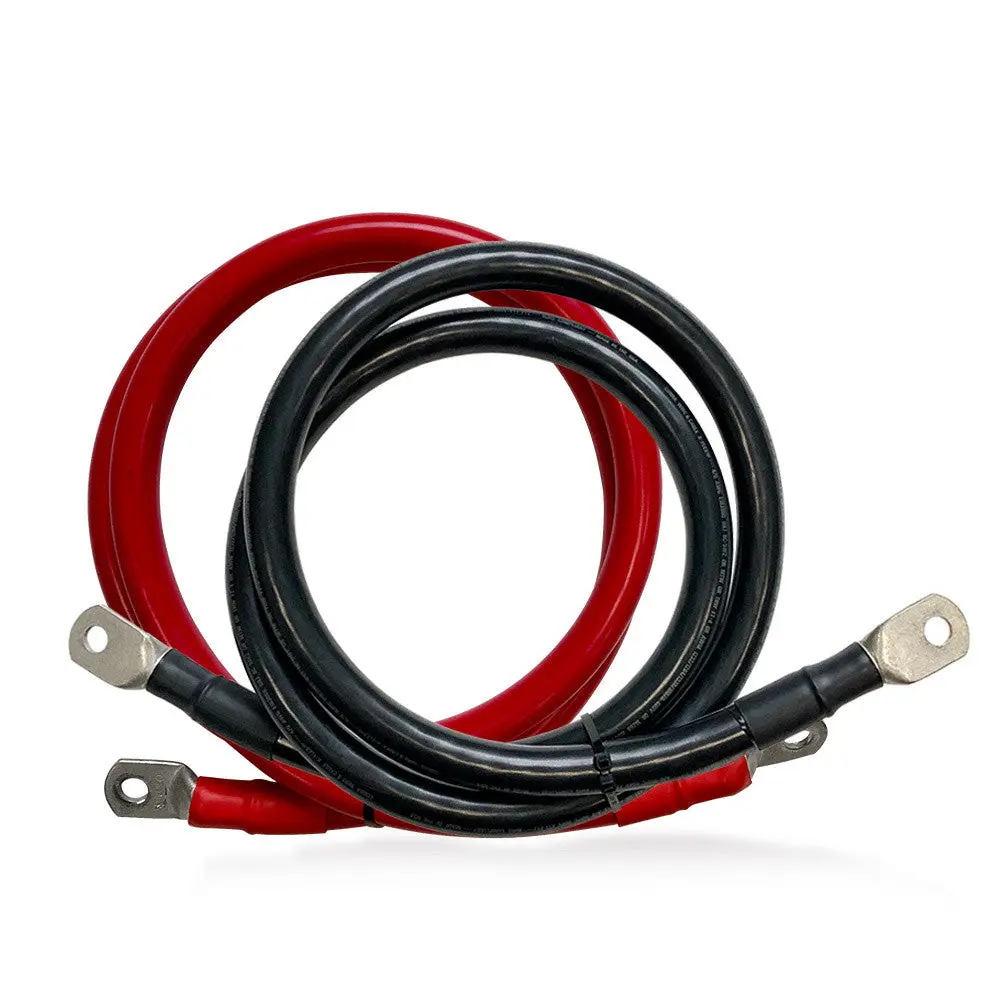

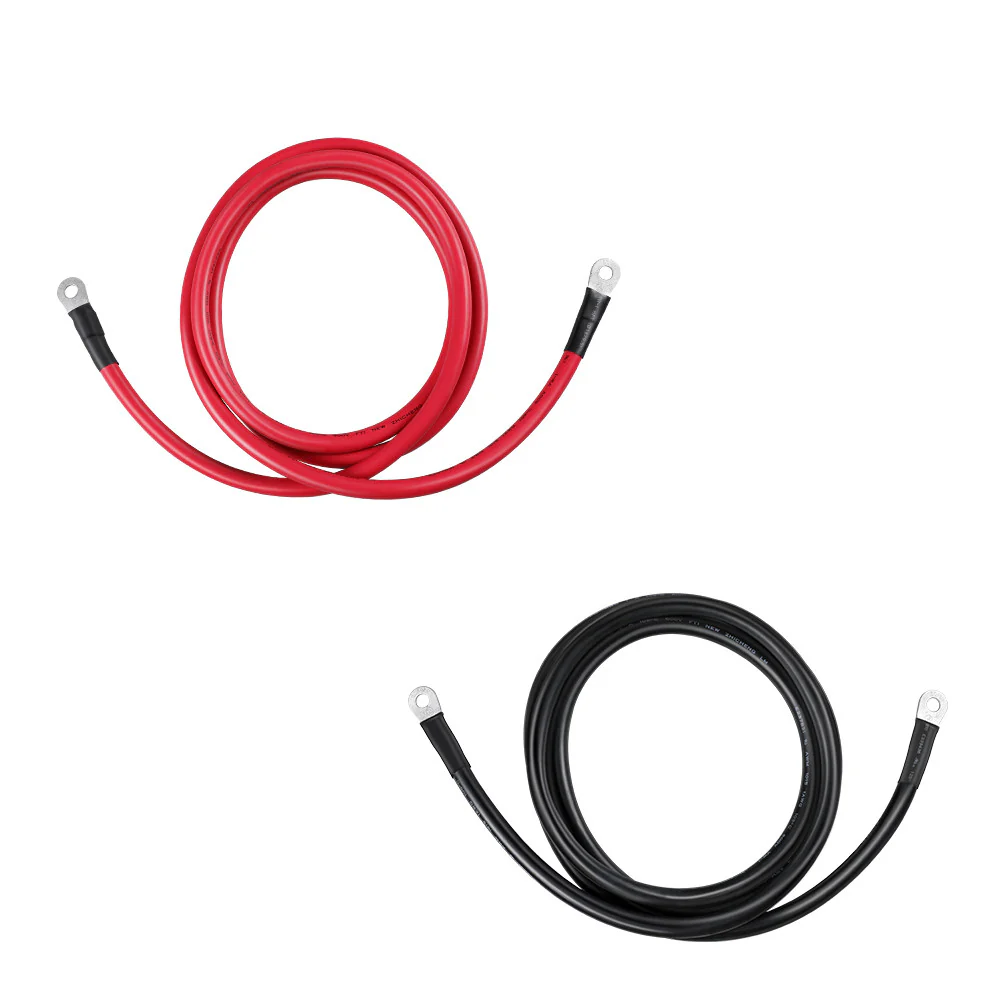

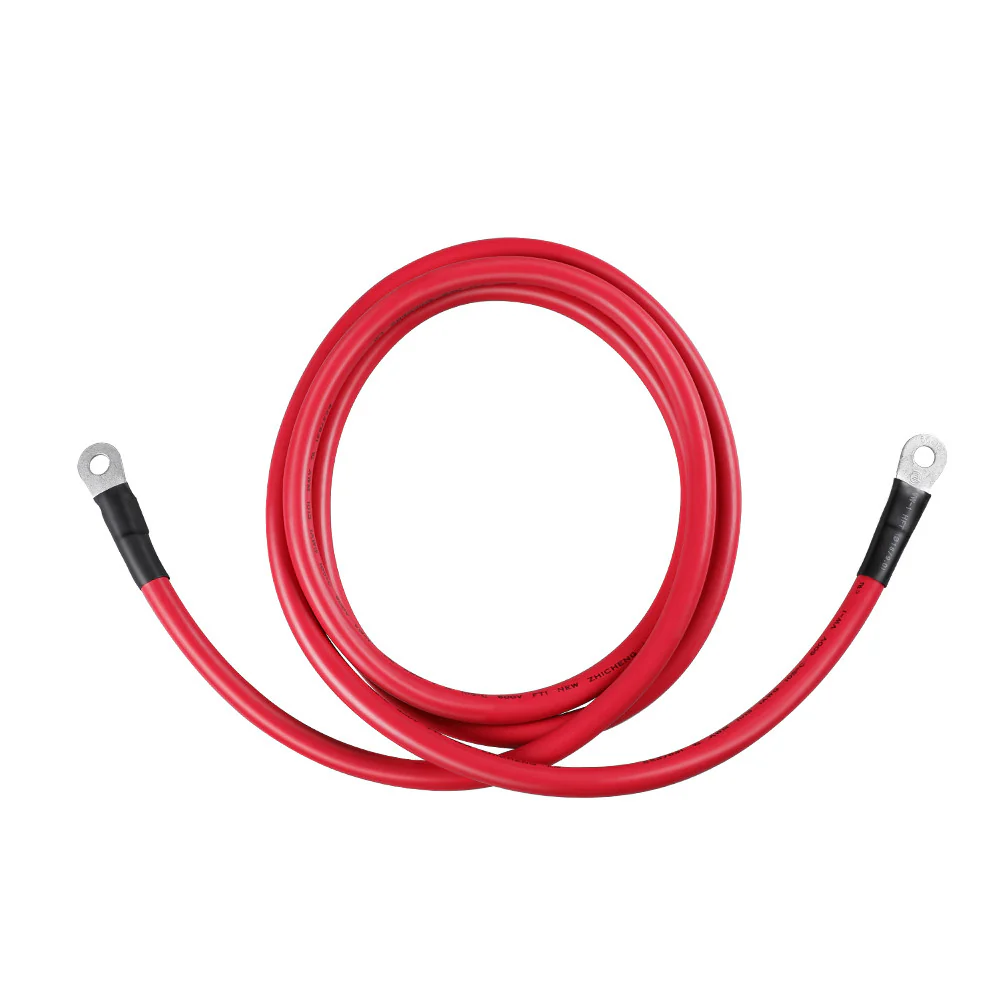

Designed to be used between a power inverter and a battery bank, the 8ft 1AWG Inverter Cables are made of UL-certified Cobra X-Flex, making them resistant to moisture, abrasion, acid, diesel fuel, and oil. Color-coded for easy identification, these cables have heat shrink on both ends and feature stainless steel ring terminals that use 3/8 lugs. Match this pair of inverter cables with your inverter for a secure connection to your battery bank.
NOTE
- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or contact us with livechat for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center
Key Features
- Colored red and black for easy identification.
- Stainless steel ring terminals for easy installation.
- Unique flame retardant polyvinyl chloride compound.
- Stranded conductors for flexibility, can be bent to suit the usage scenes.
- Durable for use, resistant to moisture, abrasion, acid, diesel fuel, and oil.
Package Includes
|
Inverter Cable for Connecting Inverter to Battery
1 Pair
|
| Renogy Inverter Cables (A pair) | |
|---|---|
| Length: 5Ft | Size: 4AWG |
| Operating Voltage: 600/1000V | Conductor: Tinned Copper |
| Maximum Operating Temperature: 221°F Dry, 167°F Wet | Terminal: 3/8In Rings Terminals at Both Ends |
| Stranding: Class K 30AWG Bare Copper Stranded | |
| Renogy Inverter Cables (A pair) | |
| Length: 8Ft | Size: 1AWG |
| Operating Voltage: 600/1000V | Conductor: Tinned Copper |
| Maximum Operating Temperature: 221°F Dry, 167°F Wet | Terminal: 3/8In Rings Terminals at Both Ends |
| Stranding: Class K 30AWG Bare Copper Stranded | |
| Renogy 5Ft 4/0 AWG Inverter Cables (A pair) | |
| Length: 5Ft | AWG: 4/0AWG |
| Operating Voltage: 600/1000V | Stranding: Stranded Copper |
| Maximum Operating Temperature: 220°F Dry, 165°F Wet | Ring terminal: 3/8” metal lugs |
| Maximum Operating Amp(Amperage): 230A |
Warranty Information
| Accessories | 1-year material and workmanship warranty |
 |
